Merging columns

Jeff Stevens

2023-03-01

Introduction

The problem

What’s different between these data sets?

What is needed to create data3 from data1 and data2?

data1

# A tibble: 12 × 3
      id  cond  resp
   <int> <int> <dbl>
 1     1     1 0.223
 2     1     2 0.254
 3     1     3 0.309
 4     2     1 0.143
 5     2     2 0.783
 6     2     3 0.385
 7     3     1 0.779
 8     3     2 0.618
 9     3     3 0.176
10     4     1 0.791
11     4     2 0.227
12     4     3 0.627

data2

# A tibble: 6 × 2
     id   age
  <int> <int>
1     1    48
2     2    29
3     3    51
4     4    49
5     5    41
6     6    28

data3

# A tibble: 12 × 4
      id   age  cond  resp
   <int> <int> <int> <dbl>
 1     1    48     1 0.223
 2     1    48     2 0.254
 3     1    48     3 0.309
 4     2    29     1 0.143
 5     2    29     2 0.783
 6     2    29     3 0.385
 7     3    51     1 0.779
 8     3    51     2 0.618
 9     3    51     3 0.176
10     4    49     1 0.791
11     4    49     2 0.227
12     4    49     3 0.627

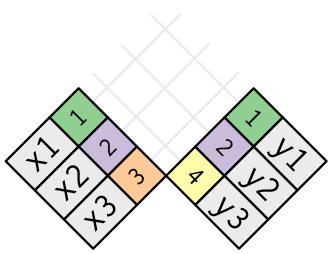

Mental model of merging

Set-up

library(dplyr)
library(nycflights13)
(flights2 <- select(flights, year:dep_time, carrier, tailnum))

# A tibble: 336,776 × 6
    year month   day dep_time carrier tailnum
   <int> <int> <int>    <int> <chr>   <chr>
 1  2013     1     1      517 UA      N14228
 2  2013     1     1      533 UA      N24211
 3  2013     1     1      542 AA      N619AA
 4  2013     1     1      544 B6      N804JB
 5  2013     1     1      554 DL      N668DN
 6  2013     1     1      554 UA      N39463
 7  2013     1     1      555 B6      N516JB
 8  2013     1     1      557 EV      N829AS
 9  2013     1     1      557 B6      N593JB
10  2013     1     1      558 AA      N3ALAA
# ℹ 336,766 more rows

Set-up

(planes2 <- select(planes, tailnum, year, model, seats))

# A tibble: 3,322 × 4
   tailnum  year model     seats
   <chr>   <int> <chr>     <int>
 1 N10156   2004 EMB-145XR    55
 2 N102UW   1998 A320-214    182
 3 N103US   1999 A320-214    182
 4 N104UW   1999 A320-214    182
 5 N10575   2002 EMB-145LR    55
 6 N105UW   1999 A320-214    182
 7 N107US   1999 A320-214    182
 8 N108UW   1999 A320-214    182
 9 N109UW   1999 A320-214    182
10 N110UW   1999 A320-214    182
# ℹ 3,312 more rows

Merging data

Joining with {dplyr}

library(dplyr)

Source: Garrick Aden-Buie

Merging data

library(nycflights13)

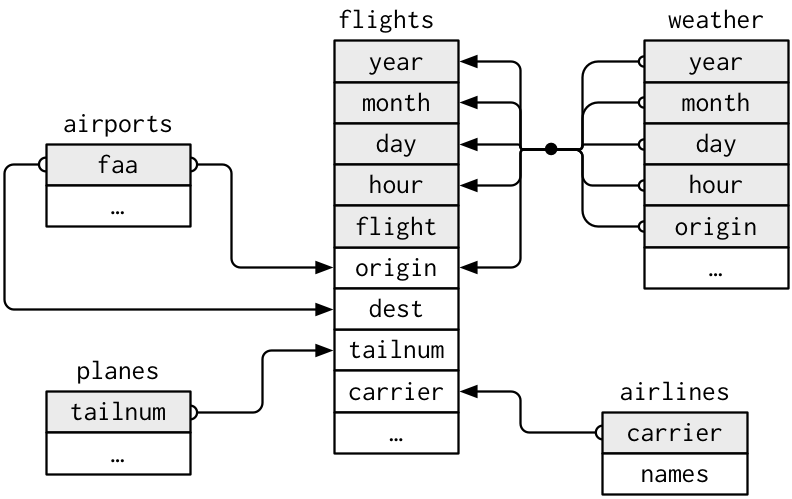

Keys

• Unique identifiers of observations

• Keys may take some work to clean first

• Double check keys for uniqueness/duplicates

• Create surrogate key if no primary key exists

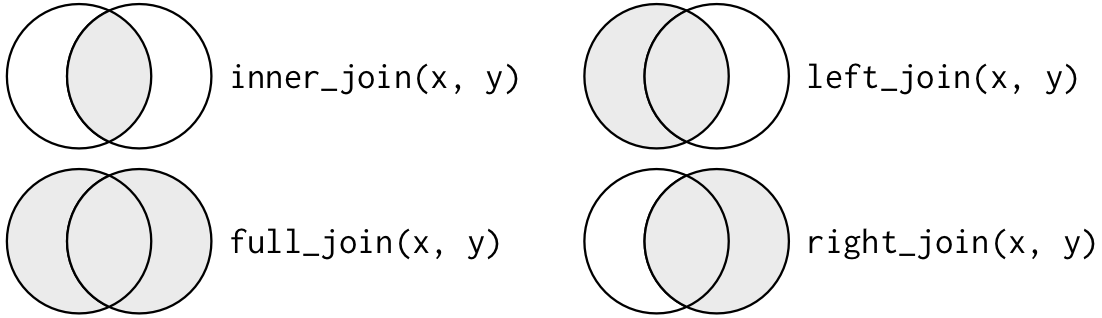

Joins

Mutating joins

Affects columns

Mutating joins

Affects columns

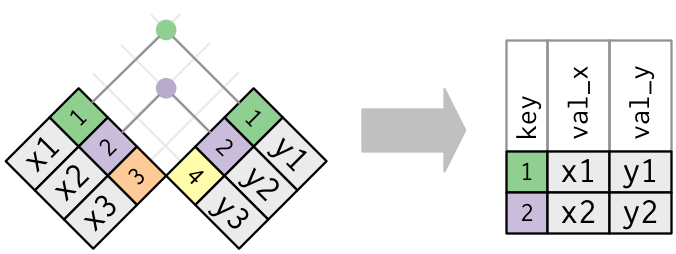

Inner joins

Keep only matching observations

Inner joins

x

# A tibble: 3 × 2
    key val_x
  <dbl> <chr>
1     1 x1
2     2 x2
3     3 x3

y

# A tibble: 3 × 2
    key val_y
  <dbl> <chr>
1     1 y1
2     2 y2
3     4 y3

inner_join(x, y, by = "key")

# A tibble: 2 × 3
    key val_x val_y
  <dbl> <chr> <chr>
1     1 x1    y1
2     2 x2    y2

x |>
  inner_join(y, by = "key")

# A tibble: 2 × 3
    key val_x val_y
  <dbl> <chr> <chr>
1     1 x1    y1
2     2 x2    y2

Inner joins

glimpse(flights2)

Rows: 336,776
Columns: 6
$ year     <int> 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2…
$ month    <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1…
$ day      <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1…
$ dep_time <int> 517, 533, 542, 544, 554, 554, 555, 557, 557, 558, 558, 558, 5…
$ carrier  <chr> "UA", "UA", "AA", "B6", "DL", "UA", "B6", "EV", "B6", "AA", "…
$ tailnum  <chr> "N14228", "N24211", "N619AA", "N804JB", "N668DN", "N39463", "…

glimpse(planes2)

Rows: 3,322
Columns: 4
$ tailnum <chr> "N10156", "N102UW", "N103US", "N104UW", "N10575", "N105UW", "N…
$ year    <int> 2004, 1998, 1999, 1999, 2002, 1999, 1999, 1999, 1999, 1999, 20…
$ model   <chr> "EMB-145XR", "A320-214", "A320-214", "A320-214", "EMB-145LR", …
$ seats   <int> 55, 182, 182, 182, 55, 182, 182, 182, 182, 182, 55, 55, 55, 55…

Inner joins

flights2 |>
  inner_join(planes2, by = "tailnum")

# A tibble: 284,170 × 9
   year.x month   day dep_time carrier tailnum year.y model       seats
    <int> <int> <int>    <int> <chr>   <chr>    <int> <chr>       <int>
 1   2013     1     1      517 UA      N14228    1999 737-824       149
 2   2013     1     1      533 UA      N24211    1998 737-824       149
 3   2013     1     1      542 AA      N619AA    1990 757-223       178
 4   2013     1     1      544 B6      N804JB    2012 A320-232      200
 5   2013     1     1      554 DL      N668DN    1991 757-232       178
 6   2013     1     1      554 UA      N39463    2012 737-924ER     191
 7   2013     1     1      555 B6      N516JB    2000 A320-232      200
 8   2013     1     1      557 EV      N829AS    1998 CL-600-2B19    55
 9   2013     1     1      557 B6      N593JB    2004 A320-232      200
10   2013     1     1      558 B6      N793JB    2011 A320-232      200
# ℹ 284,160 more rows

What do you notice about the result?

Inner joins

Warning

Only use inner joins when you want the intersection of the two data sets!

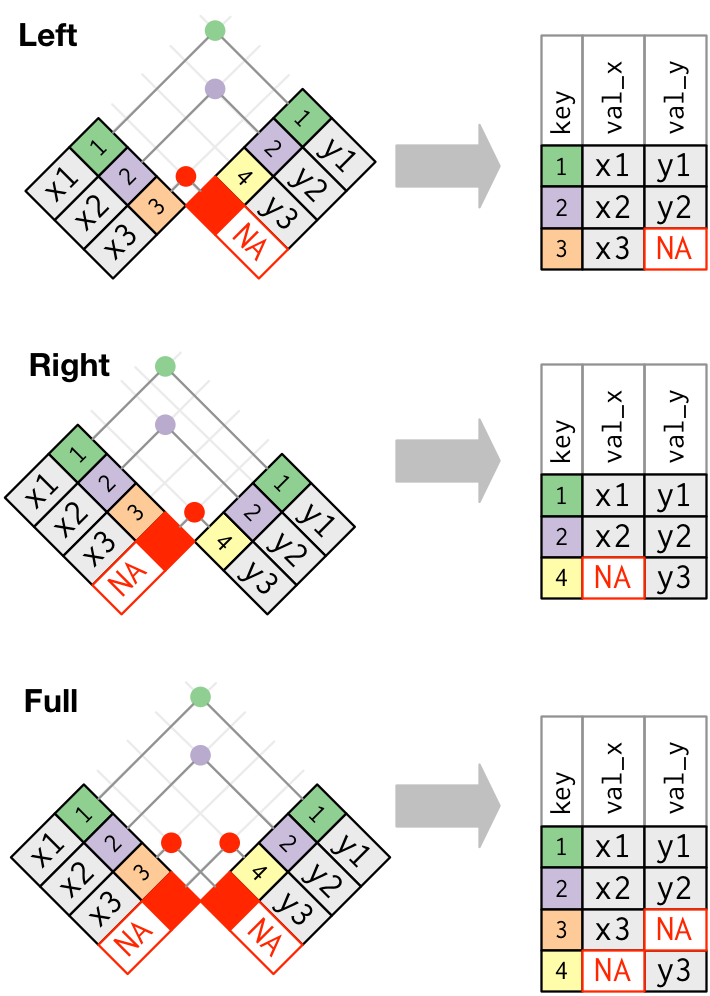

Outer joins

Keep observations that appear in at least one of the tables

• Left

• Right

• Full

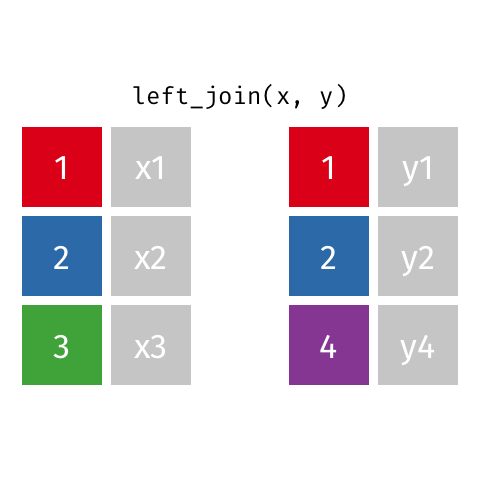

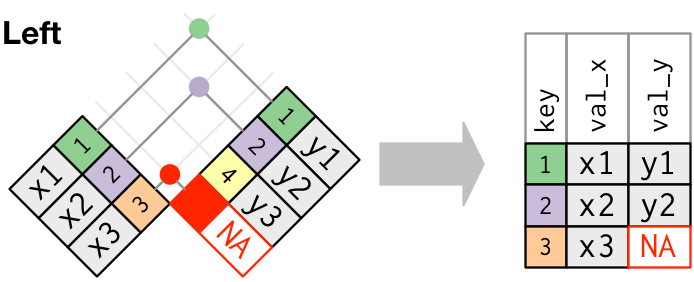

Left joins

Keep only left observations

Left joins

x

# A tibble: 3 × 2
    key val_x
  <dbl> <chr>
1     1 x1
2     2 x2
3     3 x3

y

# A tibble: 3 × 2
    key val_y
  <dbl> <chr>
1     1 y1
2     2 y2
3     4 y3

left_join(x, y, by = "key")

# A tibble: 3 × 3
    key val_x val_y
  <dbl> <chr> <chr>
1     1 x1    y1
2     2 x2    y2
3     3 x3    <NA>

Left joins

head(flights2)

# A tibble: 6 × 6
   year month   day dep_time carrier tailnum
  <int> <int> <int>    <int> <chr>   <chr>
1  2013     1     1      517 UA      N14228
2  2013     1     1      533 UA      N24211
3  2013     1     1      542 AA      N619AA
4  2013     1     1      544 B6      N804JB
5  2013     1     1      554 DL      N668DN
6  2013     1     1      554 UA      N39463

head(planes2)

# A tibble: 6 × 4
  tailnum  year model     seats
  <chr>   <int> <chr>     <int>
1 N10156   2004 EMB-145XR    55
2 N102UW   1998 A320-214    182
3 N103US   1999 A320-214    182
4 N104UW   1999 A320-214    182
5 N10575   2002 EMB-145LR    55
6 N105UW   1999 A320-214    182

Left joins

flights2 |>
  left_join(planes2, by = "tailnum")

# A tibble: 336,776 × 9
   year.x month   day dep_time carrier tailnum year.y model       seats
    <int> <int> <int>    <int> <chr>   <chr>    <int> <chr>       <int>
 1   2013     1     1      517 UA      N14228    1999 737-824       149
 2   2013     1     1      533 UA      N24211    1998 737-824       149
 3   2013     1     1      542 AA      N619AA    1990 757-223       178
 4   2013     1     1      544 B6      N804JB    2012 A320-232      200
 5   2013     1     1      554 DL      N668DN    1991 757-232       178
 6   2013     1     1      554 UA      N39463    2012 737-924ER     191
 7   2013     1     1      555 B6      N516JB    2000 A320-232      200
 8   2013     1     1      557 EV      N829AS    1998 CL-600-2B19    55
 9   2013     1     1      557 B6      N593JB    2004 A320-232      200
10   2013     1     1      558 AA      N3ALAA      NA <NA>           NA
# ℹ 336,766 more rows

Warning

Select columns used to join with argument by

Inner joins

Otherwise, it uses all shared columns, which may be wrong

flights2 |>
  left_join(planes2)

# A tibble: 336,776 × 8
    year month   day dep_time carrier tailnum model seats
   <int> <int> <int>    <int> <chr>   <chr>   <chr> <int>
 1  2013     1     1      517 UA      N14228  <NA>     NA
 2  2013     1     1      533 UA      N24211  <NA>     NA
 3  2013     1     1      542 AA      N619AA  <NA>     NA
 4  2013     1     1      544 B6      N804JB  <NA>     NA
 5  2013     1     1      554 DL      N668DN  <NA>     NA
 6  2013     1     1      554 UA      N39463  <NA>     NA
 7  2013     1     1      555 B6      N516JB  <NA>     NA
 8  2013     1     1      557 EV      N829AS  <NA>     NA
 9  2013     1     1      557 B6      N593JB  <NA>     NA
10  2013     1     1      558 AA      N3ALAA  <NA>     NA
# ℹ 336,766 more rows

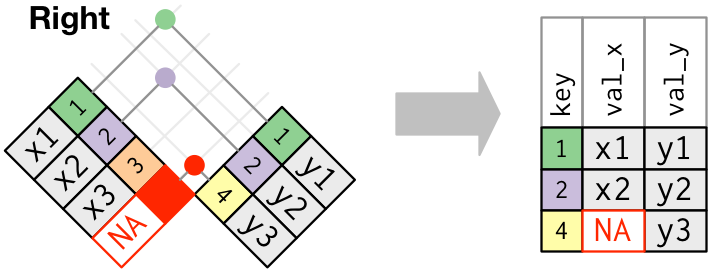

Right joins

Keep only right observations

Right joins

x

# A tibble: 3 × 2
    key val_x
  <dbl> <chr>
1     1 x1
2     2 x2
3     3 x3

y

# A tibble: 3 × 2
    key val_y
  <dbl> <chr>
1     1 y1
2     2 y2
3     4 y3

right_join(x, y, by = "key")

# A tibble: 3 × 3
    key val_x val_y
  <dbl> <chr> <chr>
1     1 x1    y1
2     2 x2    y2
3     4 <NA>  y3

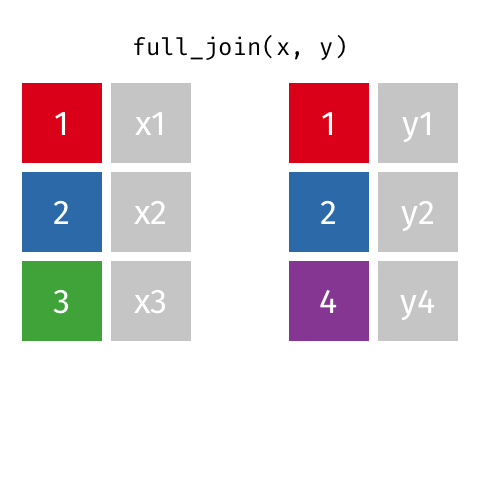

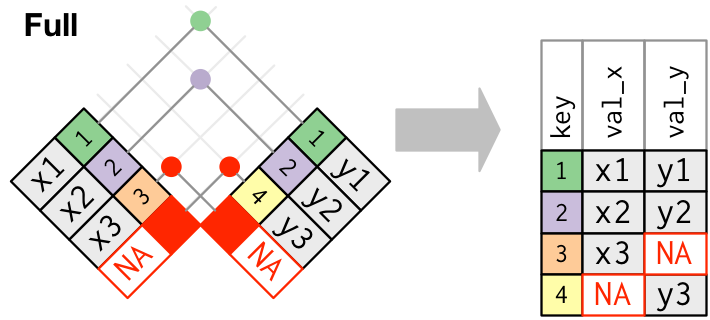

Full joins

Keep all observations

Full joins

x

# A tibble: 3 × 2
    key val_x
  <dbl> <chr>
1     1 x1
2     2 x2
3     3 x3

y

# A tibble: 3 × 2
    key val_y
  <dbl> <chr>
1     1 y1
2     2 y2
3     4 y3

full_join(x, y, by = "key")

# A tibble: 4 × 3
    key val_x val_y
  <dbl> <chr> <chr>
1     1 x1    y1
2     2 x2    y2
3     3 x3    <NA>
4     4 <NA>  y3

Solving the problem

What code combines data1 and data2 into data3?

data1

# A tibble: 12 × 3
      id  cond  resp
   <int> <int> <dbl>
 1     1     1 0.223
 2     1     2 0.254
 3     1     3 0.309
 4     2     1 0.143
 5     2     2 0.783
 6     2     3 0.385
 7     3     1 0.779
 8     3     2 0.618
 9     3     3 0.176
10     4     1 0.791
11     4     2 0.227
12     4     3 0.627

data2

# A tibble: 6 × 2
     id   age
  <int> <int>
1     1    48
2     2    29
3     3    51
4     4    49
5     5    41
6     6    28

data3

# A tibble: 12 × 4
      id   age  cond  resp
   <int> <int> <int> <dbl>
 1     1    48     1 0.223
 2     1    48     2 0.254
 3     1    48     3 0.309
 4     2    29     1 0.143
 5     2    29     2 0.783
 6     2    29     3 0.385
 7     3    51     1 0.779
 8     3    51     2 0.618
 9     3    51     3 0.176
10     4    49     1 0.791
11     4    49     2 0.227
12     4    49     3 0.627

Let’s code!

Merging columns [Rmd]
